首页>解决方案>InfineonICL8001G9W离线LED照明解方案

InfineonICL8001G9W离线LED照明解方案


添加时间:2012-06-27 | 返回首页
更多

     Infineon公司的ICL8001G采用准谐振工作模式的单级反激和PFC控制器,功率因素大于98%,LED驱动器效率高达90%,工作电压高达26V,内置数字软起动,初级PFC和调光控制采用精密的PWM.本文介绍了ICL8001G产品亮点和主要特性,方框图,应用电路以及评估板EVAL-LED-ICL8001G-Bulb02特性,电路图,材料清单和变压器电路图.

    The ICL8001G employs quasi-resonant operation mode optimized for off-line LED lighting, especially dimmable LED bulbs for incandescent lamp replacement. Precise PWM generation enables primary control for phase cut dimming and high power factor PF>98%. Significant improved driver efficiency, up to 90%, compared to other conventional solutions. The product has a wide operation range (up to 26V) of IC voltage supply and lower power consumption. Multiple safety functions ensure a full system protection in failure situations. With its full feature set and simple application, the ICL8001G represents an outstanding choice for quasi-resonant flyback LED bulb designs combining feature set and performance at minimum BOM cost.

    ICL8001G产品亮点:

• Quasi-Resonant Control For Highly Efficient LED Driving Solutions

• Primary Side Flyback Control With Integrated PFC And Phase-Cut Dimming

• Integrated HV Startup Cell For Short Time To Light

• Best In Class System BOM For Dimmable LED Bulb

ICL8001G主要特性:

• High, stable efficiency over wide operating range

• Optimized for trailing- and leading-edge dimmer

• Precise PWM for primary PFC and dimming control

• Power cell for Vcc pre-charging with constant current

• Built-in digital soft-start

• Foldback correction and cycle-by-cycle peak current limitation

• VCC over/ under-voltage lockout

• Auto restart mode for short circuit protection

• Adjustable latch-off mode for output overvoltage protection
图1. ICL8001G方框图


图2. ICL8001G初级边控制的应用电路图

评估板EVAL-LED-ICL8001G-Bulb02

EVAL-LED-ICL8001G-Bulb02 Quasi-Resonant Flyback Converter for Phase Cut Dimming with High Power Factor

The EVAL-LED-ICL8001G-Bulb02 demonstrates the single-stage flyback and PFC controller ICL8001G in an LED Bulb application. Its quasiresonant operation mode, primary side control, integrated PFC and phase-cut dimming control makes it the best in class system solution for dimmable LED bulbs.


图3. 评估板EVAL-LED-ICL8001G-Bulb02外形图

评估板EVAL-LED-ICL8001G-Bulb02主要特性:

•High, stable efficiency over wide operating range through quasiresonant operation mode

•Primary side side flyback control with integrated PFC and phase-cut dimming

•Energy efficient phase cut dimming

•Power cell for VCC pre-charging with constant current

•Built-in digital soft-start

•Foldback correction and cycle-by-cycle peak current limitation

•VCC over- and under-voltage lockout

•Auto restart mode for short circuit protection

•Adjustable latch-off mode for output overvoltage protection

•Best in class system BOM for dimmable bulbs

评估板EVAL-LED-ICL8001G-Bulb02主要指标:


图4. 评估板EVAL-LED-ICL8001G-Bulb02电路图

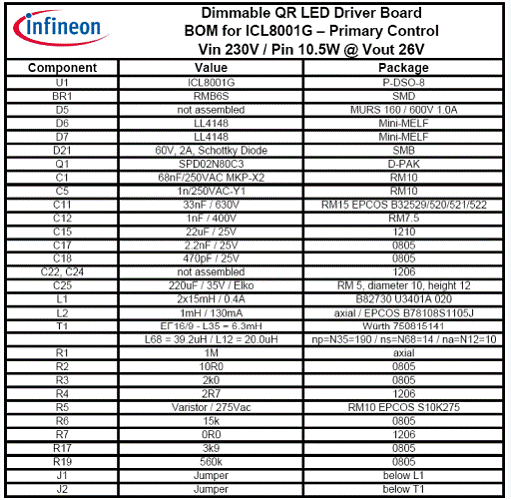

评估板EVAL-LED-ICL8001G-Bulb02材料清单:





图5. 评估板EVAL-LED-ICL8001G-Bulb02变压器电路图
